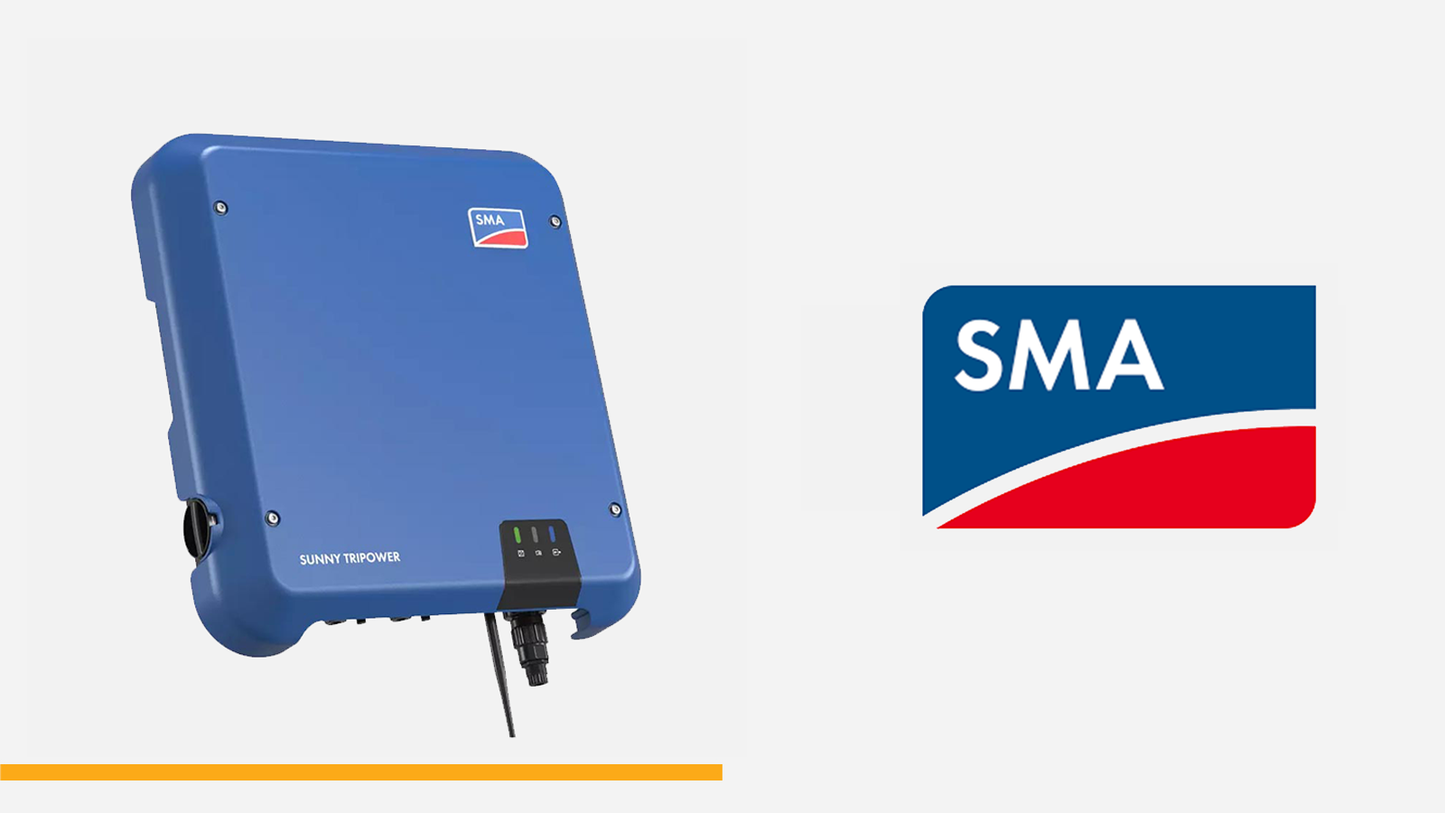

SMA Sunny Tripower STP 4.0-3 AV-40 – 4 kW Three-Phase Photovoltaic Inverter Sunny Tripower Series
The SMA Sunny Tripower STP 4.0-3 AV-40, part of the SMA Sunny Tripower series and available through Ecogenera, is a high-quality three-phase photovoltaic inverter designed for small residential and commercial photovoltaic systems. It offers high efficiency, configuration flexibility, and easy installation, integrating 2 independent MPPTs and remote monitoring via SMA Smart Connected to optimize solar energy production.
Key Features
- Rated power of 4,000 W / 4 kW – Ideal for small three-phase systems
- 2 independent MPPTs – Advanced optimization of photovoltaic production
- Compatibility with Sunny Portal and SMA Smart Connected
- Compatibility with SMA inverters and systems
- IP65 protection rating and CEI 0-21, IEC certifications
Why Choose It
It reduces installation times, increases energy efficiency, and ensures long-term reliability thanks to SMA Smart Connected technology and a design focused on continuity of service.
Technical Specifications
| Brand | SMA |
|---|---|
| Model | Sunny Tripower STP 4.0-3 AV-40 |
| Series | Sunny Tripower |
| Product Type | Three-phase photovoltaic inverter |
| Power / Capacity | 4,000 W / 4 kW |
| Input / Output | Max Voc 850 V – 2 MPPT – Range 150–800 V |
| Yield / Efficiency | 98.3% (maximum) – 97.8% (European) |
| Interfaces | Ethernet, RS485, WLAN |
| Protection | IP65 – Type II overvoltage protection on DC and AC sides |
| Certifications | CEI 0-21, IEC |
| Dimensions / Weight | 460 × 497 × 176 mm – 17 kg |
| Operating Temperature | –25°C / +60°C |
| Warranty | 5 years, extendable |
Compatibility
- Inverter: Compatible with SMA Sunny Tripower series inverters
- Batteries/Storage: Integration with SMA systems via external management
- Monitoring Systems: SMA Sunny Portal, SMA Smart Connected
Installation and Use
Indoor or outdoor installation thanks to the IP65 protection rating. Requires a three-phase connection, MPPT configuration, and registration on Sunny Portal. Average installation time: approximately 2 hours.
Frequently Asked Questions
What is the SMA Sunny Tripower STP 4.0-3 AV-40 used for?
This three-phase photovoltaic inverter optimizes energy production from solar systems up to 4 kW, managing two independent strings via dual MPPT and SMA remote monitoring.
Is it compatible with my system?
Compatible with three-phase photovoltaic systems up to 4 kW. It supports voltages up to 850 V and works perfectly with SMA Smart Connected systems and Sunny Portal.
What is the difference between Sunny Tripower and STP 4.0-3 AV-40?
Sunny Tripower is the name of the SMA three-phase inverter range, while STP 4.0-3 AV-40 is the specific 4,000 W / 4 kW model suitable for small systems.
Can it be installed outdoors?
Yes, thanks to the IP65 protection rating and resistance to temperature variations up to +60°C.
Related products: SMA three-phase | Data sheet
Do you have questions about sizing or compatibility? Request technical advice.
Related terms and use cases
Synonyms and related queries: SMA inverter, Sunny Tripower inverter, STP 4.0-3AV-40, 4 kW photovoltaic inverter, three-phase solar inverter, 4kW solar inverter, dual MPPT, SMA remote monitoring.
