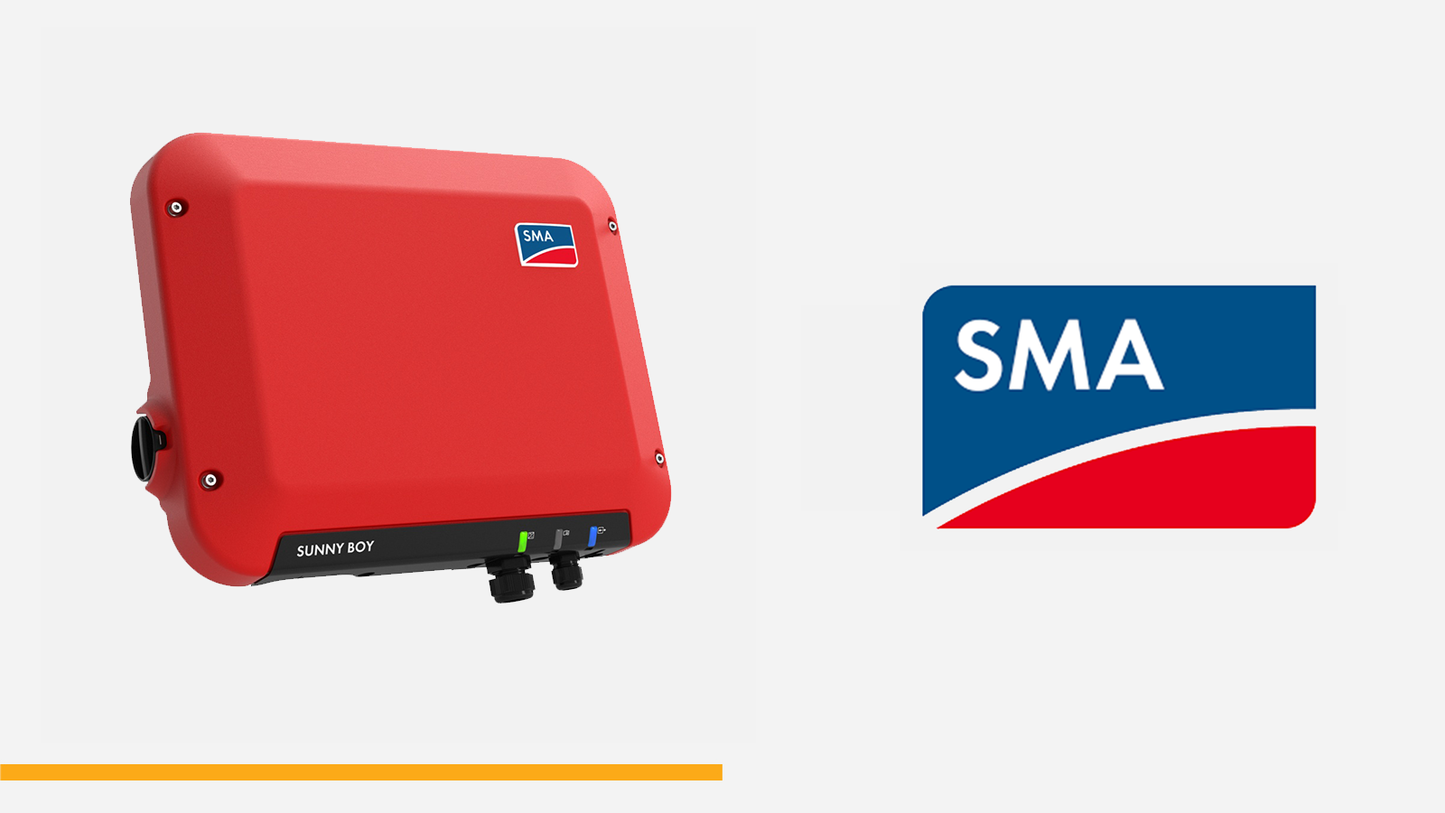

SMA SB 5.0-1AV-41 Sunny Boy – 5,000W Photovoltaic Inverter for Residential Systems
The SMA SB 5.0-1AV-41, part of the Sunny Boy series and available through Ecogenera, is a 5 kW single-phase photovoltaic inverter designed for medium-power residential systems. Thanks to its 2 independent MPPTs and 4 strings, it offers maximum flexibility in system design, combined with efficiency of up to 97.8% and smart monitoring via an app or portal.
Key Features
- 2 MPPTs with 4 strings – Ideal for multi-gable roofs and complex systems
- Maximum efficiency of 97.8% – Optimal performance in all conditions
- Remote monitoring – Compatible with Sunny Portal and the SMA App
- IP65 protection – Can also be installed outdoors
- Compact design – Only 10 kg, easy to wall-mount
Why Choose It
The SMA SB 5.0-1AV-41 inverter is designed to maximize energy production in the most demanding residential settings, thanks to its dual MPPT, high efficiency, and compatibility with SMA storage and monitoring systems.
Technical Specifications
| Brand | SMA |
|---|---|
| Model | SB 5.0-1AV-41 |
| Series | Sunny Boy |
| Product Type | Photovoltaic inverter |
| Power / Capacity | 5,000 W |
| Input / Output | Max. Voc 600V – MPPT 90V–580V – 2 MPPT / 4 strings |
| Yield / Efficiency | Maximum efficiency 97.8% – European efficiency 97.3% |
| Interfaces | RS485, optional Wi-Fi |
| Protection | IP65 – Type II overvoltage protection on the DC and AC sides |
| Certifications | IEC/EN |
| Dimensions / Weight | 460 × 357 × 122 mm – 10 kg |
| Operating Temperature | -25°C / +60°C |
| Warranty | 5 years (extendable) |
Compatibility
- Inverter: compatible with other models in the Sunny Boy series
- Batteries/Storage: can be integrated into SMA systems with Sunny Home Manager
- Monitoring Systems: Sunny Portal, SMA Energy App, Sunny Home Manager 2.0
Installation and Use
Can be installed both indoors and outdoors thanks to its IP65 rating. Supports connection via RS485 or an optional Wi-Fi module. Lightweight, with mounting bracket included, for quick installation in under an hour.
Frequently Asked Questions
What is the SB 5.0-1AV-41 used for?
The SMA SB 5.0-1AV-41 is an inverter designed to optimize domestic photovoltaic production by converting DC energy to AC and ensuring maximum energy yield.
Is it compatible with my system?
Yes, it supports systems up to 5,000 W, with 2 MPPTs and 4 strings. Compatible with panels at various tilt angles and SMA monitoring and storage systems.
What is the difference between Sunny Boy and SB 5.0-1AV-41?
Sunny Boy is SMA's residential range. SB 5.0-1AV-41 is the specific 5,000 W model, ideal for domestic systems with complex configurations.
Can it be installed outdoors?
Yes, thanks to its IP65 protection rating, it can be installed outdoors safely and reliably.
Related Products: SMA Single-Phase Inverter | Data Sheet
Have questions about sizing or compatibility? Request technical advice.
Related Terms and Use Cases
Synonyms and related queries: 5kW photovoltaic inverter, SMA SB 5.0, SB5.0-1AV-41, Sunny Boy 5.0, single-phase solar inverter, dual MPPT, home photovoltaic system.
