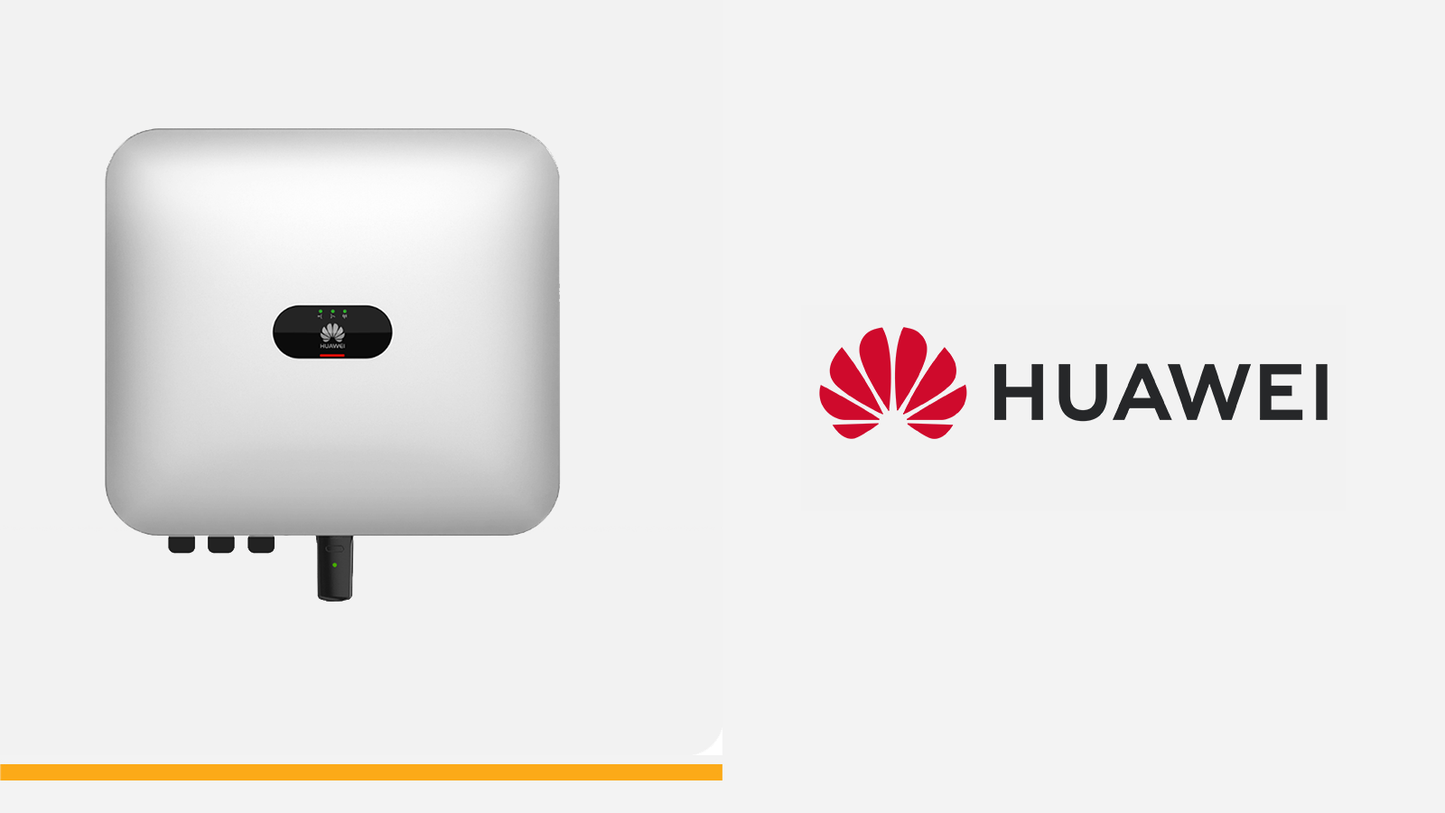

Huawei SUN2000-25KTL-M5 25 kW Three-Phase Photovoltaic Inverter SUN2000 Series
The Huawei SUN2000-25KTL-M5 is a three-phase photovoltaic inverter designed for medium-sized commercial and industrial photovoltaic systems. The device converts the energy produced by the photovoltaic modules into usable energy for the system's three-phase electrical grid.
The inverter belongs to the Huawei SUN2000 series and features four independent MPPT trackers to optimize the output of photovoltaic strings, even in complex configurations. The system is compatible with Huawei optimizers and FusionSolar energy monitoring systems.
The IP66-rated enclosure allows for both indoor and outdoor installation, ensuring resistance to dust and weather conditions and making the device suitable for commercial, industrial, and large building photovoltaic systems.
Function of the Inverter in Photovoltaic Systems
The photovoltaic inverter is the device that converts the direct current generated by the photovoltaic modules into alternating current usable by the building's electrical grid or fed into the public grid.
The system manages the energy produced by the photovoltaic modules and enables output maximization through MPPT tracking systems and system performance monitoring.
- converts direct current to alternating current
- manages the energy produced by the photovoltaic system
- optimizes output through MPPT
- provides intelligent system monitoring and management
System performance monitoring can be carried out using energy management platforms compatible with the Huawei FusionSolar system.
Key Features of the Huawei SUN2000-25KTL-M5 Inverter
- 25 kW three-phase photovoltaic inverter
- Maximum efficiency of up to 98.6%
- Four independent MPPTs for advanced string management
- Compatible with Huawei SUN2000 optimizers
- Monitoring via the Huawei FusionSolar platform
- Communication via RS485 and optional WLAN modules
- IP66 protection rating for indoor and outdoor installations
- Fanless passive cooling
Applications of the 25 kW Photovoltaic Inverter
- Three-phase commercial photovoltaic systems
- Industrial buildings and warehouse installations
- Commercial photovoltaic systems
- Solar energy generation systems
- Commercial structures and large building installations
Inverter Technical Specifications
| Model | SUN2000-25KTL-M5 |
|---|---|
| Series | Huawei SUN2000 |
| Type | Three-phase photovoltaic inverter |
| Rated Power | 25 kW |
| Input / Output | 1100 V DC max, 4 MPPT / three-phase AC |
| Efficiency | 98.6% |
| Communication Interfaces | RS485, optional WLAN |
| Protection | IP66, Type II SPD on DC and AC sides |
| Certifications | CE, IEC 62109 |
| Dimensions | 640 × 530 × 270 mm |
| Weight | 43 kg |
| Operating Temperature | -25 °C / +60 °C |
| Warranty | 10 years |
Photovoltaic Inverter Installation
The inverter is designed for wall-mounted installation in technical rooms or outdoor areas. The IP66 protection rating ensures resistance to dust, moisture, and weather conditions.
The inverter configuration and integration with the monitoring system must be carried out by qualified installers in accordance with the manufacturer's technical specifications and current electrical regulations.
Frequently Asked Questions About the Huawei SUN2000-25KTL-M5
What is the SUN2000-25KTL-M5 used for?
The inverter converts the energy produced by the photovoltaic modules into usable energy for the building's three-phase electrical grid or for feed-in to the public grid.
Is it compatible with Huawei optimizers?
The device is compatible with Huawei optimizers and FusionSolar energy monitoring systems.
What is the difference between the SUN2000 series and the 25KTL-M5 model?
The 25KTL-M5 model is the 25 kW version of the Huawei SUN2000 series and is designed for commercial and industrial photovoltaic systems with multiple string configurations.
Can it be installed outdoors?
Yes, thanks to its IP66 protection rating, the device can also be installed outdoors.
Huawei SUN2000-25KTL-M5 Inverter Data Sheet
For complete technical information and the installation manual, please refer to the official product data sheet.
Related products: Huawei Three-Phase SUN2000 Series | Data sheet
Do you have questions about sizing or compatibility? Request technical advice.
