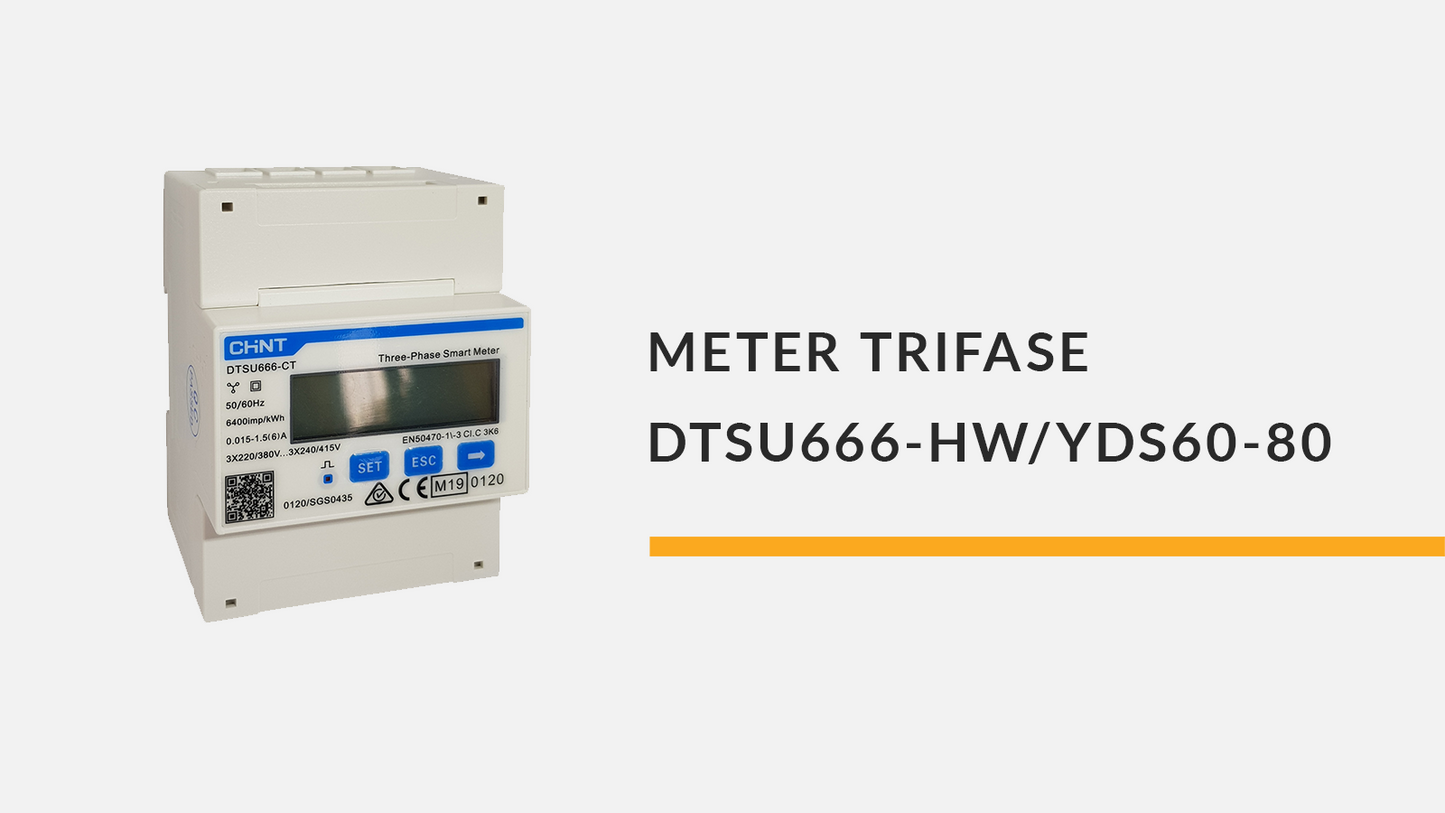

Three-Phase Meter DTSU666-HW/YDS60-80
Bidirectional energy meter for advanced monitoring of photovoltaic systems.
Enables precise measurement of energy consumed and fed into the grid.
Essential for load monitoring and regulating the power fed into the grid.
Compatible with Huawei inverters for intelligent energy management.
Easy installation with direct connection up to 80A or with CTs (not included) for higher measurements.
Main features
Measures active and reactive energy with high precision.
Bidirectional: monitors both consumed and fed energy.
RS485 communication for connection with the inverter and monitoring system.
Direct insertion for measurements up to 80A.
Designed for the use of external CTs (not included) for measurements over 80A.
Compatible with Huawei FusionSolar for real-time monitoring.
Show more...
Technical Data
- Type: Bidirectional three-phase meter
- Model: DTSU666-HW/YDS60-80
- Power supply: 3x230/400V AC
- Maximum current: 80A (direct insertion)
- External CT compatibility: Yes (not included, for measurements over 80A)
- Communication interface: RS485 (Modbus RTU)
- Accuracy: ±1%
- Display: LCD for real-time data viewing
- Compatibility: Huawei inverters and FusionSolar system
- Installation: DIN-rail
- Operating temperature: -25°C ~ +60°C
- Protection rating: IP51
- Weight: 0.6 kg
Couldn't load pickup availability
Important notes: Shipping and order handling costs are not included and will be communicated later during the quoting phase. These costs are due regardless of the chosen delivery method, including pickup at the premises.
Product prices may vary depending on availability and supplier terms at the time of the quote request. Images are for illustrative purposes only and may not accurately reflect the actual product; descriptions may contain errors. We recommend always checking the manufacturer's technical data sheet.
