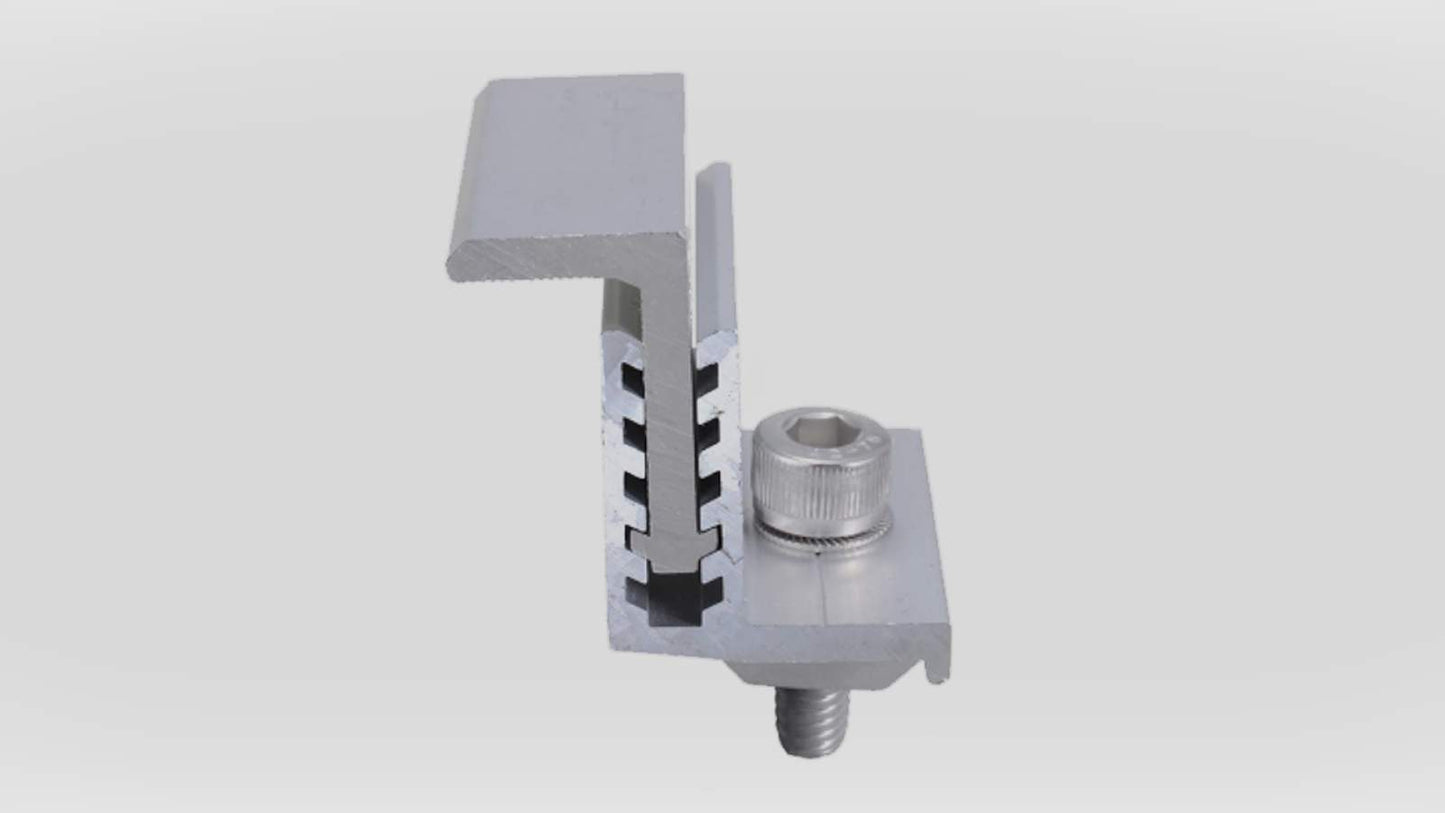

End clamp for modules with 34–35 mm frame
Pack of 50 pcs
The end clamp for modules with a 34–35 mm frame ensures secure fastening at the end of the structure. Made of AL6005-T5 aluminum and SUS 304 stainless steel, it is designed to withstand the elements and corrosion. The click-in system simplifies installation on flat roofs, pitched roofs, and ground-mounted structures.
Main features
- For modules with a 34–35 mm frame
- Materials: AL6005-T5 + corrosion-resistant SUS 304
- Click-in system for quick installation
- High wind/snow resistance, suitable for outdoor use
- Pack of 50 pieces
Technical specifications
| Model | End clamp 34–35 mm |
|---|---|
| Series | PV mounting accessories |
| Product type | End clamp |
| Supported module thickness | 34–35 mm (0.034–0.035 m) |
| Materials | AL6005-T5 aluminum, SUS 304 stainless steel |
| Mounting system | Click-in |
| Applications | Flat roofs, pitched roofs, ground-mounted structures |
| Packaging | 50 pieces |
| Warranty | 2 years |
Installation and use
Position the clamp at the end of the module row (34–35 mm frame) and secure it using the click-in system with suitable fasteners. Follow the structure manufacturer's tightening torques to ensure proper hold and durability.
Frequently asked questions
What is the 34–35 mm end clamp used for?
It secures the module at the end of the structure, completing the fastening line.
Is it suitable for outdoor use?
Yes, the materials and finishes are designed to withstand the elements and corrosion.
What is the difference between an end clamp and a mid clamp?
The end clamp is used at the ends; the mid clamp connects adjacent modules in the middle.
Unsure about sizing or compatibility? Request technical advice.
Related terms and use cases
Synonyms and related queries: 34 mm end clamp, 35 mm end clamp, PV end clamp, solar panel end bracket, PV module mounting accessories.
