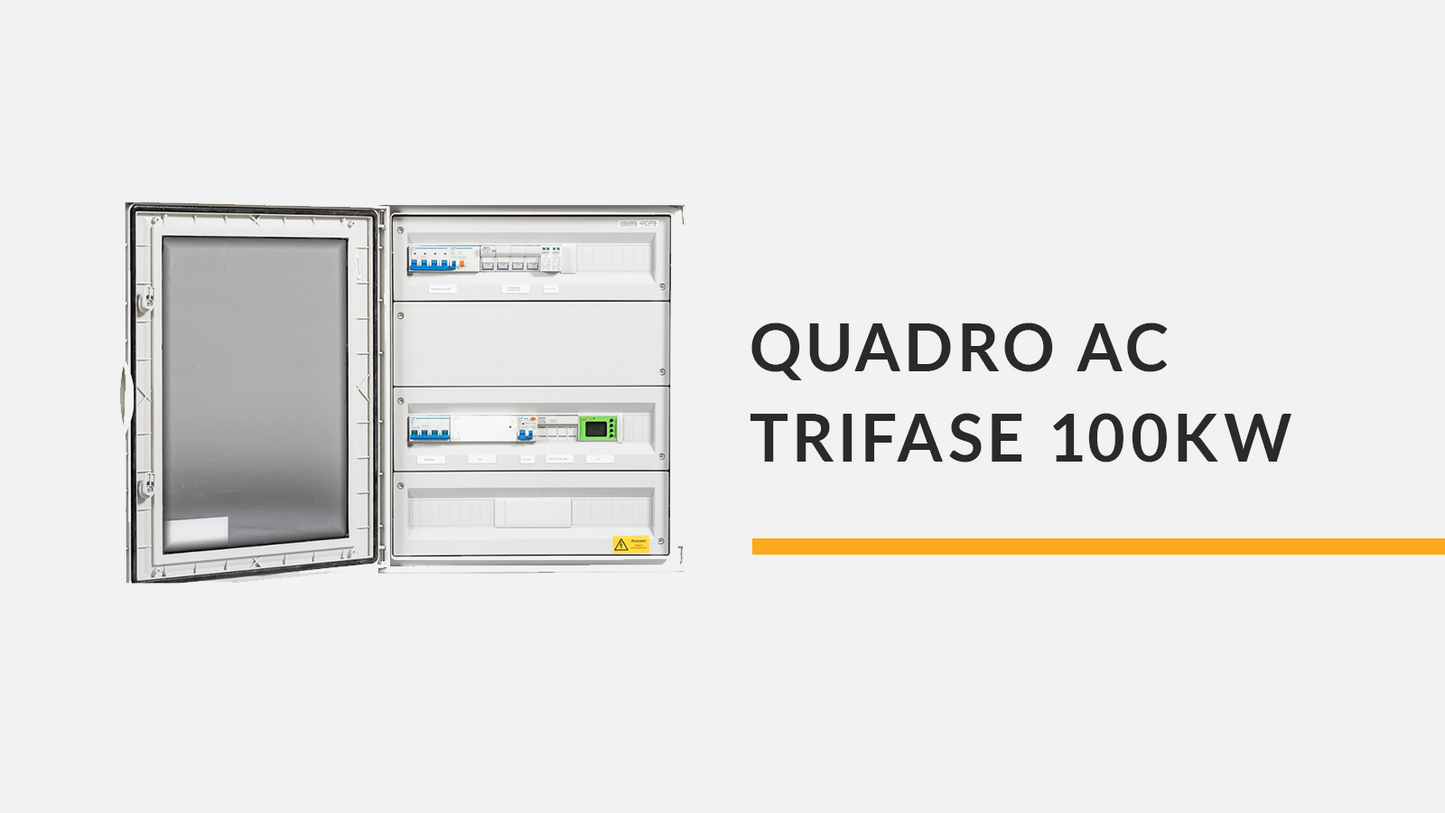

100 kW Three-Phase Photovoltaic AC Panel with CEI 0-21 Interface Device for 50 kW + 50 kW Inverters
The 100 kW three-phase photovoltaic AC panel with a CEI 0-21 compliant interface device is an electrical panel designed for the management, protection, and control of the alternating current (AC) side of photovoltaic systems connected to the low-voltage electrical grid.
The electrical panel is configured to manage two 50 kW three-phase photovoltaic inverters, for a total system power of 100 kW. It integrates electrical protection, isolation, control, and monitoring systems designed to ensure the coordination of protections between the inverters, distribution lines, and the electrical grid in accordance with Italian technical regulations for the connection of power generation systems.
This AC panel for photovoltaic systems enables the safe connection of inverters to the electrical grid, ensuring compliance with the technical requirements set out by the CEI 0-21 standard for connecting power generation systems to the low-voltage distribution grid.
Function of the AC Panel in Photovoltaic Systems
The photovoltaic AC electrical panel represents the interface between the photovoltaic inverters and the electrical grid. Its main function is to manage the alternating current side of the system, ensuring electrical safety, operational continuity, and component protection.
The integrated interface device constantly monitors electrical grid parameters such as:
- grid voltage
- frequency
- electrical line operating conditions
- distribution grid stability
In the event of anomalies or conditions that do not comply with the limits set by the CEI 0-21 standard, the system automatically intervenes by disconnecting the photovoltaic system from the grid to prevent damage to the components and ensure the safety of the electrical system.
In commercial and industrial photovoltaic systems, the AC panel also enables the coordination of electrical protections between the inverters, distribution lines, and the grid, reducing the risk of faults and improving the stability of the power generation system.
The integration of the GSM communicator also enables remote monitoring of the photovoltaic system and integration with energy monitoring and management systems.
Main Features of the 100 kW Photovoltaic AC Panel
- AC side management of two 50 kW three-phase photovoltaic inverters
- Total photovoltaic system power up to 100 kW
- Interface device compliant with the CEI 0-21 standard
- Dedicated magnetic-thermal protection switches for each inverter
- Main magnetic-thermal switch with motorized control
- Selective residual current relay for system protection
- System status indication via front LED indicators
- GSM communicator with inputs and outputs for remote monitoring
- Industrial metalwork with IP55 protection rating
Applications of the Three-Phase Photovoltaic AC Panel
- Commercial photovoltaic systems
- Industrial photovoltaic systems
- Installations on production buildings and warehouses
- Systems with multiple inverters connected in parallel
- Photovoltaic systems connected to the low-voltage grid according to CEI 0-21
- Electricity generation systems from renewable sources
- Systems with remote energy monitoring
Components Included in the AC Electrical Panel
- 1 industrial metalwork enclosure, IP55, dimensions 188 × 99 × 40 cm
- 2 4-pole 125A 36kA magnetic-thermal enclosure switches for inverters
- 2 220-240 VAC frame 250 / 400 / 630 disconnectors
- 1 4-pole 200A 36kA main magnetic-thermal switch
- 1 motorized control for the main switch
- 1 integrated CEI 0-21 interface device with a delay of more than 5 seconds
- 1 selective residual current relay 0.03-25A, 110-400 VAC/DC supply
- 1 toroidal current transformer, diameter 110 mm
- 3 modular LED indicators 115-230 V, red, green, yellow
- 1 GSM communicator with antenna and lithium battery, 6DI + 4AI + 4DO
- 2 1P+N 6A 30mA 10kA Type A C-curve residual current magnetic-thermal switches
- 1 1P+N 16A 30mA 10kA Type A C-curve residual current magnetic-thermal switch
- 1 16A 250 VAC Schuko modular socket
- 2 NM8N NC-C-NA auxiliary contacts
- 1 4-pole frame 250 terminal cover
Technical Specifications of the Photovoltaic AC Panel
| Panel type | Three-phase photovoltaic AC electrical panel with interface device |
|---|---|
| Inverter configuration | 2 50 kW three-phase inverters |
| System rated power | 100 kW |
| Connection standard | CEI 0-21 |
| Metalwork protection rating | IP55 |
| Panel dimensions | 188 × 99 × 40 cm |
| Communication system | GSM communicator with digital and analog inputs and outputs |
Installation of the AC Electrical Panel for Photovoltaic Systems
The AC electrical panel is designed for installation in technical rooms, power generation plants, and industrial environments dedicated to the management of photovoltaic systems.
The metalwork with an IP55 protection rating ensures high protection of electrical components against dust, weather conditions, and moisture, ensuring operational reliability even in complex industrial environments.
The sizing and configuration of the panel must be verified by the photovoltaic system designer or a qualified electrical installer based on the system power, the grid characteristics, and the requirements of the distribution grid operator.
Frequently Asked Questions about the Photovoltaic AC Panel
What does the CEI 0-21 standard require?
The CEI 0-21 standard defines the technical rules for connecting electricity generation systems to the low-voltage distribution grid, establishing the safety, protection, and management requirements for the interface between the system and the grid.
For which systems is this AC panel designed?
The AC panel is designed for photovoltaic systems with two 50 kW three-phase inverters connected to the low-voltage electrical grid, with a total power of 100 kW.
What is the function of the photovoltaic AC panel?
The AC panel manages the alternating current side of the photovoltaic system, ensuring electrical protection, line isolation, and coordination between the inverters and the electrical grid.
